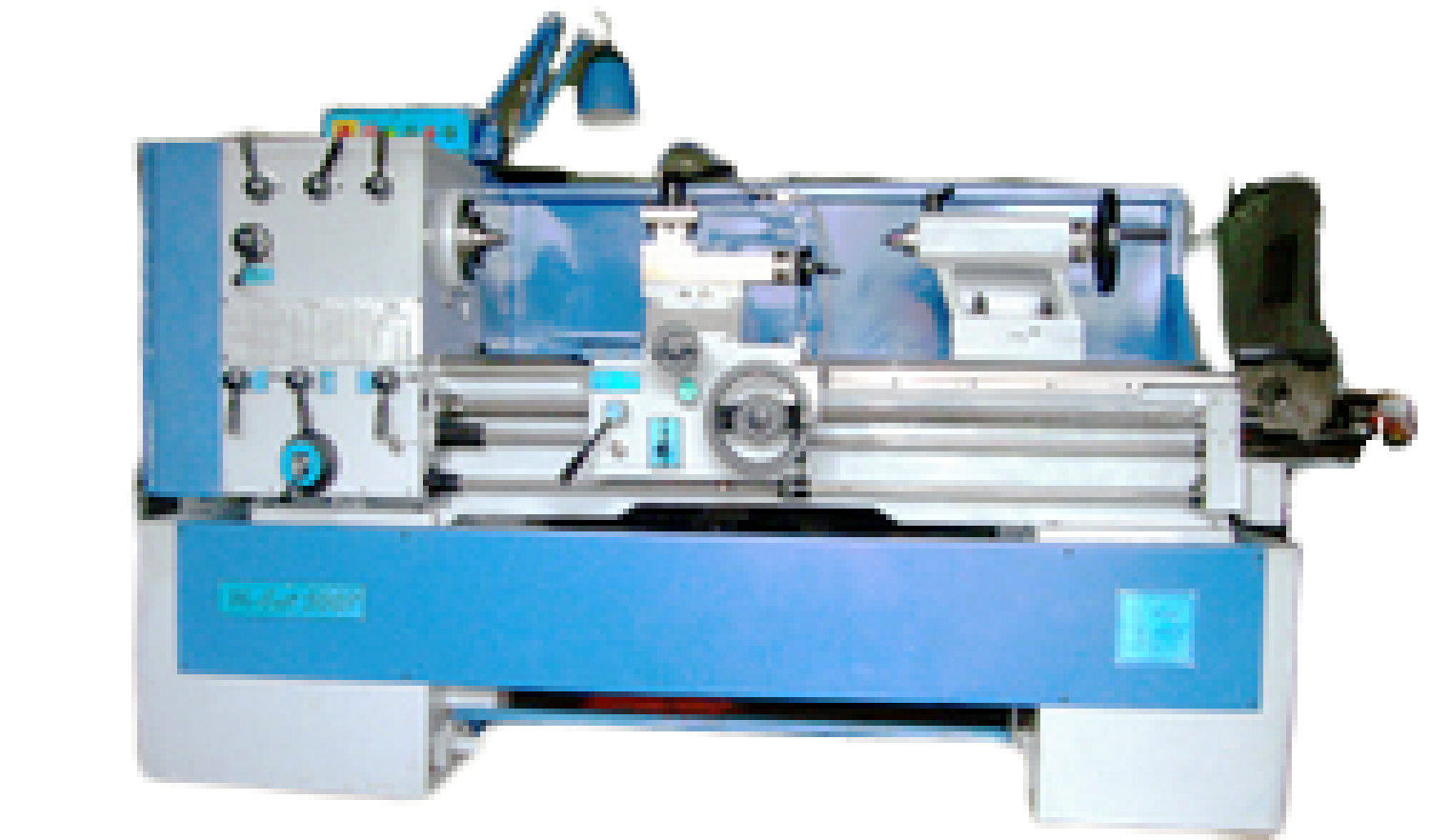

Turnmaster 450 All Geared Lathe Machine
All Geared Head Lathe, comprising of hardened and ground bed, American A2-6 Spindle Nose, R.H. Hand Wheel Apron, Square Tool Post and electrical item suitable for 415V, 7.5HP, 50 cycles with 5.5 KW motor
Machine Equipped With:
Dead Centre with Centre Sleeve
Dead Centre for Tailstock
Toolkit
Oil Gun
Square Tool Post
Machine Lamp
Coolant Pump with Cock Equipment
Maintained Contact Shaft for Spindle Operating
Thread Dial Indicator
Dog Plate
Electro-Magnetic Brake with Foot Pedal
SALIENT FEATURES
Hardened Ground prismatic guideways for the carriage
Geared headstock with hardened and ground gears
Main spindle rigid, accurate, hardened and ground-mounted on PS class Taper Roller Bearings
Feed box designed for easy selection of a wide range of feeds and threads.
Range of Models: Turn master 450 Series Lathes
Model - S1257 St. Bed Centre Height 235 mm ABC - 1250
Model - S1657 St. Bed Centre Height 235 mm ABC - 1650
Model - S2007 St. Bed Centre Height 235 mm ABC - 2000
