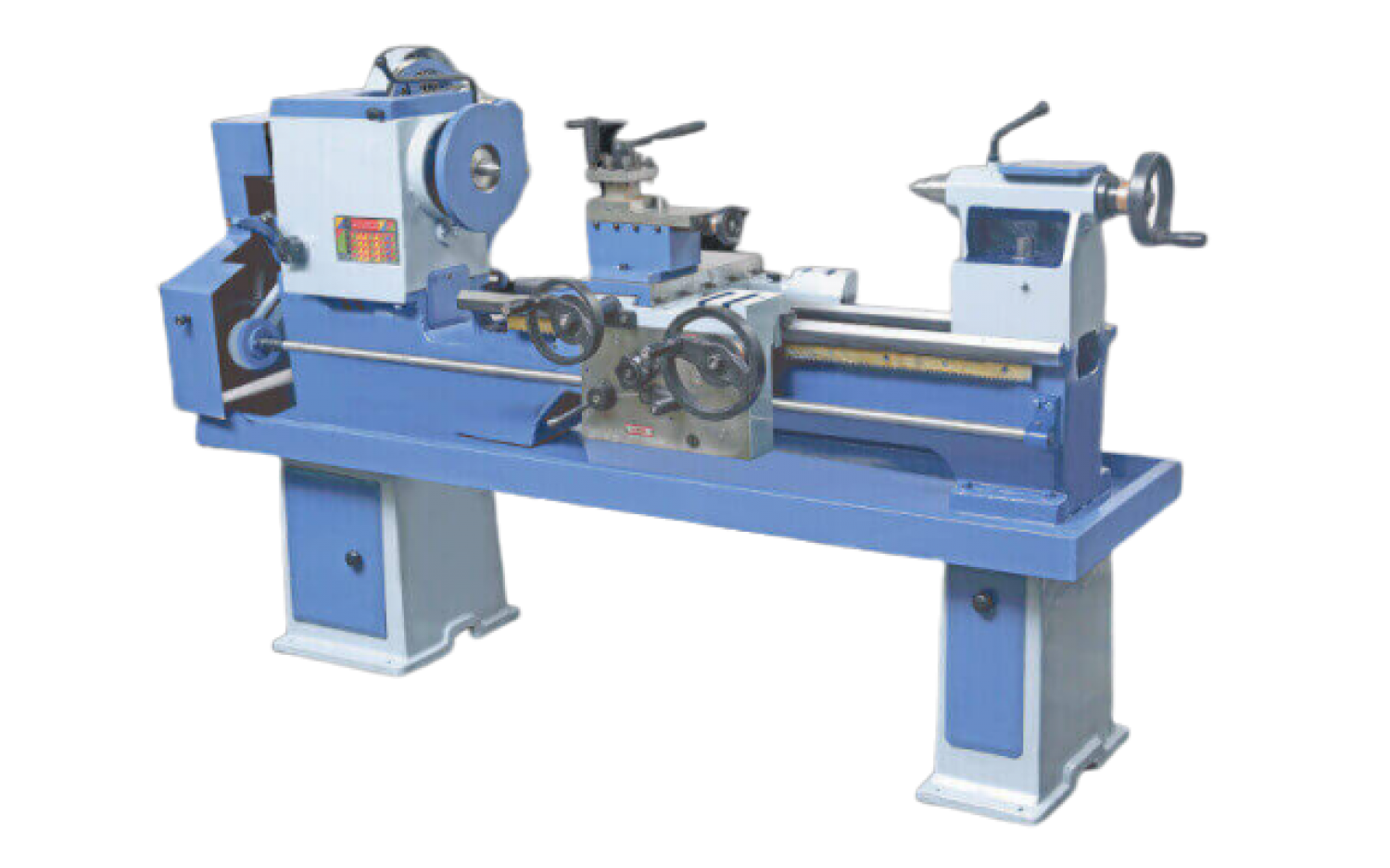

TURBO - Medium Duty Lathe Machine
ECO Medium Duty Lathe Machine
- Accessories
- Technical Specification
| Change Gear Set (Inch & mm) |
| Chuck Plate |
| Tool Post Key |
| Centre Adaptor |
| Dead Centre (2 Nos.) |
| V – Belt Set |
| Motor Pulley |
| Four Position Tool Post |
|
Specification |
MD-1 |
MD-2 |
MD-3 |
|
Bed: |
| Bed Type | 2 V & 2 Flat | 2 V & 2 Flat | 2 V & 2 Flat |
| Bed Length | 1375 (4' 6") | 1600 (5'-3") | 1825 (6') |
| Bed Width | 280 (11") | 280 (11") | 280 (11") |
| Gap Length | 110 mm | 110 mm | 110 mm |
| Gap Length in front of Face Plate | 105 mm | 105 mm | 105 mm |
|
Capacity: |
| Height Of Centre | 215 (10") | 215 (10") | 215 (10") |
| Swing over Bed | 510 mm | 510 mm | 510 mm |
| Swing over Gap | 710 mm | 710 mm | 710 mm |
| Swing over Cross Slide | 320 mm | 320 mm | 320 mm |
| Admit Between Centre | 510 mm | 730 mm | 950 mm |
| Movement of Cross Slide | 240 mm | 240 mm | 240 mm |
| Movement of Compound Slide | 110 mm | 110 mm | 110 mm |
|
Main Spindle: |
| Spindle Nose (Threaded Type) | Ø 105 mm | Ø 105 mm | Ø 105 mm |
| Taper Bore in Spindle Sleeve | MT-4 | MT-4 | MT-4 |
| Spindle Bore | Ø 80 (3.1/8") | Ø 80 (3.1/8") | Ø 80 (3.1/8") |
|
Tail Stock: |
| Quill Dia | Ø 50.8 mm | Ø 50.8 mm | Ø 50.8 mm |
| Taper in Quill | MT-4 | MT-4 | MT-4 |
| Quill Travel | 130 mm | 130 mm | 130 mm |
|
Speed: |
| No. of Spindle Speed | 6 | 6 | 6 |
| RPM (Low/High) | 40 – 400 | 40 – 400 | 40 – 400 |
|
Threads: |
| Metric Thread | 13 (1 to 6 mm) | 13 (1 to 6 mm) | 13 (1 to 6 mm) |
| English Thread | 19 (2 to 24 TPI) | 19 (2 to 24 TPI) | 19 (2 to 24 TPI) |
| Lead Screw | Ø 1.25" x 4 TPI | Ø 1.25" x 4 TPI | Ø 1.25" x 4 TPI |
|
Electricals: |
| Motor Power | 2 HP / 1.5 Kw | 2 HP / 1.5 Kw | 2 HP / 1.5 Kw |
|
Drive: |
| V Belt | B-44 | B-44 | B-44 |
|
General: |
| Weight (Approx.) | 600 Kg. | 700 Kg. | 750 Kg. |
| Floor Space Occupied in (mm) | 1650 x 970 x 1325 | 1870 x 970 x 1325 | 2100 x 970 x 1325 |
| (Approx.)L x W x H | | | |
