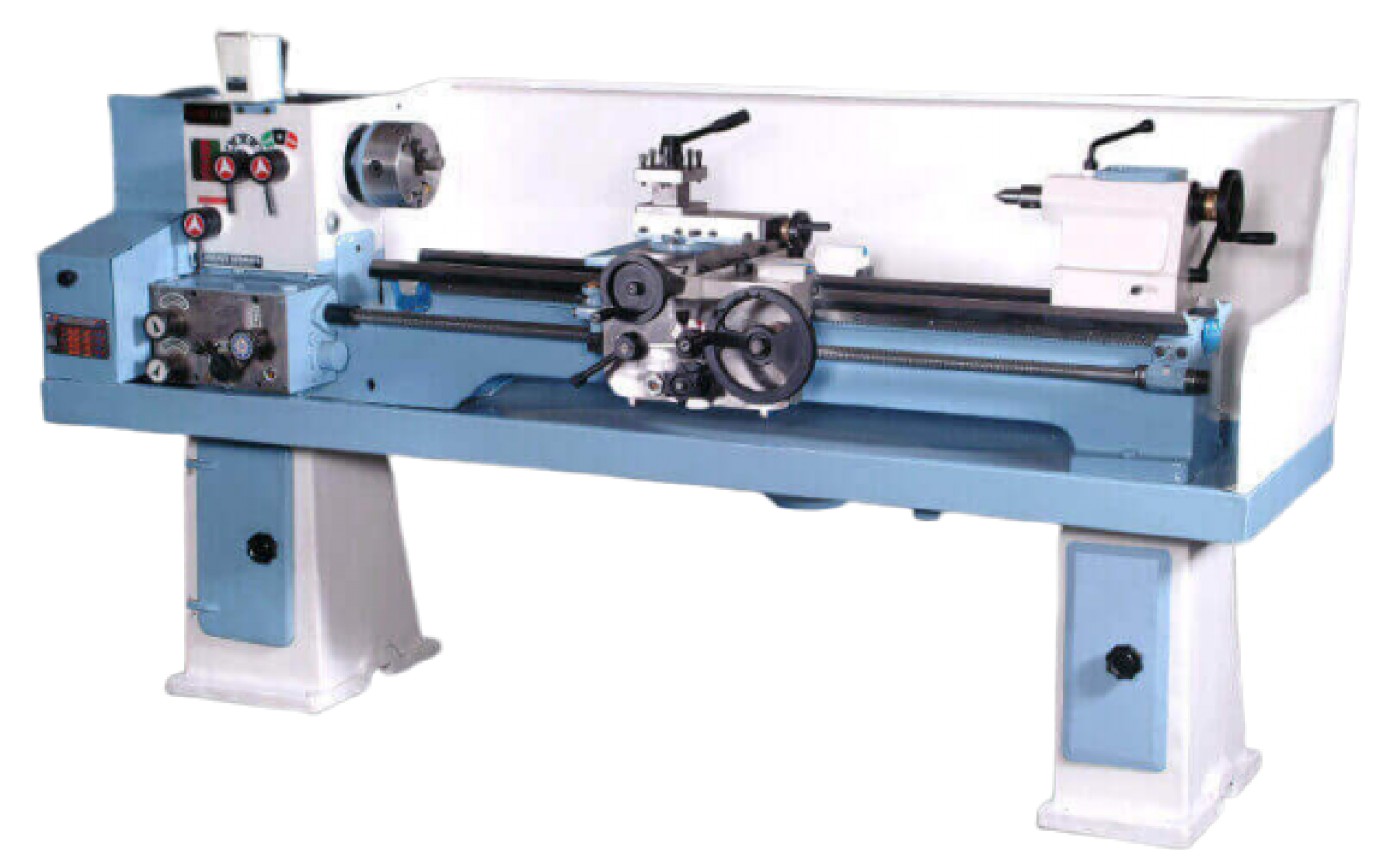

TURBO - LX 165 Light Duty All Geared Lateh
LX 165 All Geared Head Lathe Machine
SPECIAL FEATURE
Bed is made from25 grade cast iron of 180 BHN hardness, strictly inspected with microlevel, hardness tester and straight edge.
Boring of head stock is done on WMW boring machine fitted with induction hardened and ground spindle made from alloy steel.
Fitted with induction hardened and ground spindle made from alloy steel. With external and internal grinding.
Single screw apron is totally enclosed in oil bath system with lever type arrangement for automatic feeds and fitted with gear made from 25 grade Cast Iron.
All the gear in head strock are made from En-8 and with high range of speed. (Nitriding gear)
Hanging panel board has been provided with R-F/Stop/Inching facility. (If ordered)
Parts & Instruction Manual as per Indian Standard IS – 1878 (Part-1) 1993.
- Accessories
- Technical Specification
| Norton Gear Box (Single Screw) |
| Electric Motor (2 HP, 3PH. 1440 rpm) |
| R-F switch with electricals |
| Rear Splash guard |
| Chuck Plate |
| Tool Post Key |
| Centre Adaptor |
| Dead Centre (2 Nos.) |
| V-Belt Set for Motor |
| Motor Pulley |
| Four Position Tool Post |
| Dog or True Chuck |
| Coolant Pump, Tank & Nozzle |
| Quick Change Tool Post with tool holders |
| Rear Tool Post with long cross slide |
| Taper Turning Attachment |
| Steady Rest |
| Follow Rest |
| Face Plate |
| Chuck Plate |
| Box Type Fabrication |
| Any Special Requirement as per Customer’s Drawing. |
| Blue & White (Two Tone) |
| Bayer Blue & Silver Grey (Two Tone) |
|
Specification |
165 / LX -1 |
165 / LX -2 |
165 / LX -3 |
|
Bed: |
| Bed Type | 2 V & 2F | 2 V & 2F | 2 V & 2F |
| Bed Length | 1375 (4'-6") | 1600 (5'-3") | 1825 (6') |
| Bed Width | 240 mm (9.½") | 240 mm (9.½") | 240 mm (9.½") |
| Gap Length | 110 mm | 110 mm | 110 mm |
|
Capacity: |
| Height Of Centre | 165 mm (6.5") | 165 mm (6.5") | 165 mm (6.5") |
| Swing over Bed | 320 mm | 320 mm | 320 mm |
| Swing Gap | 510 mm | 510 mm | 510 mm |
| Swing over Cross Slide | 180 mm | 180 mm | 180 mm |
| Admit Between Centre | 700 mm | 930 mm | 1160 mm |
| Movement of Cross Slide | 200 mm | 200 mm | 200 mm |
| Movement of Compound Slide | 115 mm | 115 mm | 115 mm |
|
Main Spindle: |
| Spindle Nose (Threaded Type) | Ø 62 mm | Ø 62 mm | Ø 62 mm |
| Taper Bore in Spindle Sleeve | MT-3 | MT-3 | MT-3 |
| Spindle Bore | Ø 40 mm | Ø 40 mm | Ø 40 mm |
|
Tail Stock: |
| Quill Dia | Ø 38.1 mm | Ø 38.1 mm | Ø 38.1 mm |
| Taper in Quill | MT-3 | MT-3 | MT-3 |
| Quill Travel | 120 mm | 120 mm | 120 mm |
|
Speed: |
| No. of Spindle Speed | 8 | 8 | 8 |
| RPM (Low/High) | 76-725 | 76-725 | 76-725 |
|
Feed: |
| No. of feeds range | 56 | 56 | 56 |
| Longitudinal/Rev. | 0.057 to 1.012 mm | 0.057 to 1.012 mm | 0.057 to 1.012 mm |
| Transverse/Rev. | 0.010 to 0.184 mm | 0.010 to 0.184 mm | 0.010 to 0.184 mm |
|
Threads: |
| Metric Thread | 20 (0.5 to 7.5 mm) | 20 (0.5 to 7.5 mm) | 20 (0.5 to 7.5 mm) |
| English Thread | 36 (4 to 60 TPI) | 36 (4 to 60 TPI) | 36 (4 to 60 TPI) |
| Lead Screw | Ø 1" x 4 TPI | Ø 1" x 4 TPI | Ø 1" x 4 TPI |
|
Electricals: |
| Motor Power | 2 H.P. / 1.5 KW | 2 H.P. / 1.5 KW | 2 H.P. / 1.5 KW |
|
Drive: |
| V Belt | B-42 | B-42 | B-42 |
|
General: |
| Weight (Approx.) | 500 Kg. | 575 Kg. | 650 Kg. |
| Floor Space Occupied in (mm) | 1600 x 700 | 1900 x 700 | 2125 x 700 |
| (Approx.)L x W x H | x 1370 | x 1370 | x 1370 |
