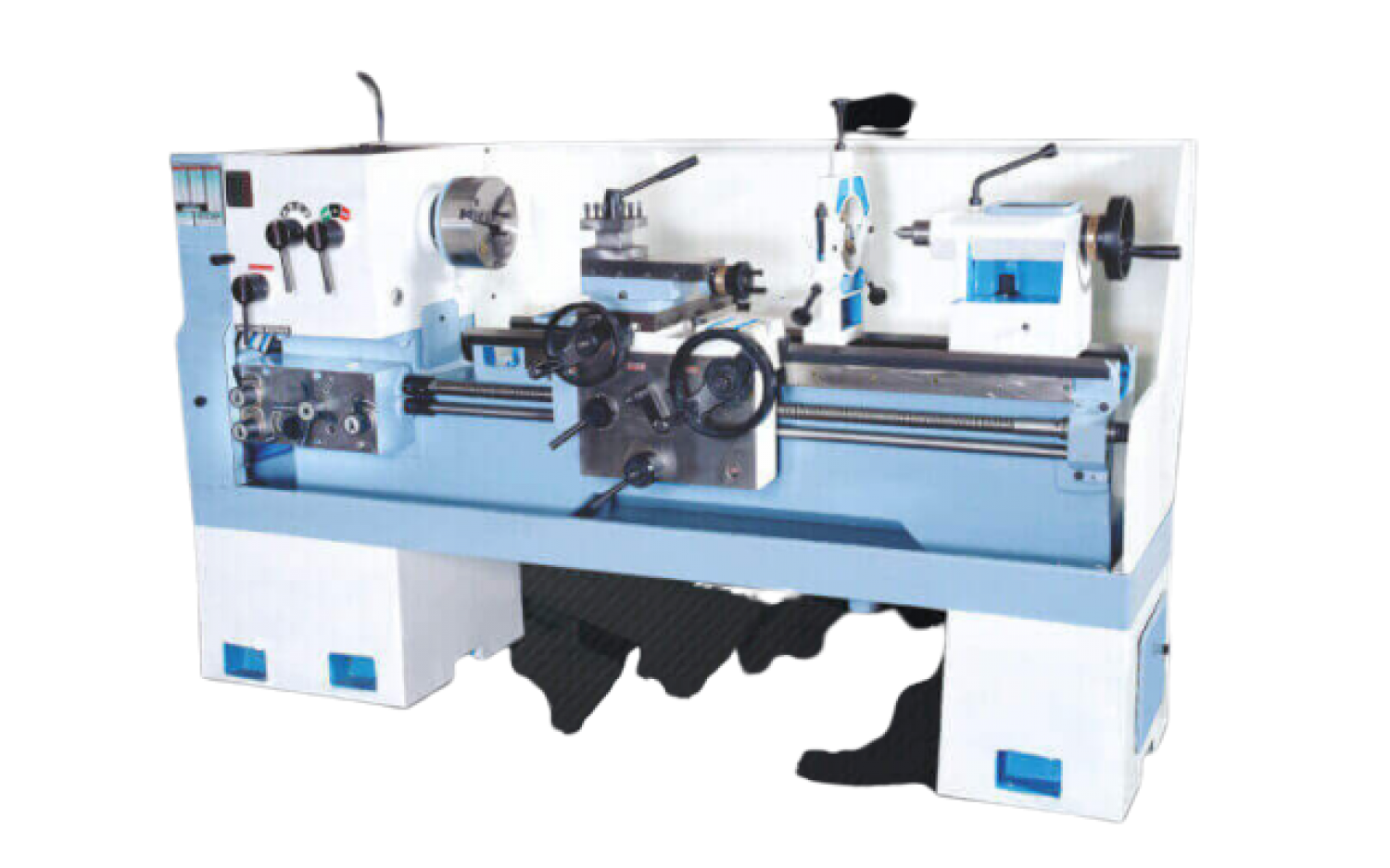

TURBO - LX 215 All Geared Head Lathe Machine
LX 215 All Geared Head Lathe Machine
SPECIAL FEATURE
Bed is made from25 grade cast iron of 180 BHN hardness, strictly inspected with microlevel, hardness tester and straight edge.
Boring of head stock is done on WMW boring machine fitted with induction hardened and ground spindle made from alloy steel.
Double Screw Apron is totally enclosed in oil bath system with lever type arrangement for automatic feeds and fitted with gear made from alloy steel
All the gear in head strock are made from En-8 and with high range of speed. (Nitriding gear)
DOUBLE SCREW NORTON GEAR BOX
Provided as time saver equipment with separate thread & feed shaft. Thus, feed & thread gears could be changed rapidly and decreases the wear and tear of half nut and lead screw.
Instruction manual as per Indian standard IS – 1878 (part -1) 1993.
- Accessories
- Technical Specification
| Norton Gear Box (Double Screw) |
| Rear Splash Guard |
| Chuck Plate |
| Tool Post Key |
| Centre Adaptor |
| Dead Centre (2 Nos.) |
| Motor Pulley |
| Four Position Tool Post |
| Electric motor (3 HP, 3 PH. 1440 rpm) |
| V- Belt set for motor |
| Electric Panel Board (Hanging Type) |
| Dog or True Chuck |
| Coolant Pump, Tank & Nozzle |
| Quick Change Tool Post with tool holders |
| Taper Turning Attachment |
| Steady Rest |
| Follow Rest |
| Face Plate |
| Machine Lamp |
| Electro magnetic brake with foot fedal |
| A24 spindle |
| Any Special Requirement as per Customer’s Drawing. |
| Blue & White (Two Tone) |
| Bayer Blue & Silver Grey (Two Tone) |
|
Specification |
215 / LX -1 |
215 / LX -2 |
215 / LX -3 |
|
Bed: |
| Bed Type | 2 V & 2 Flat | 2 V & 2 Flat | 2 V & 2 Flat |
| Bed Length | 1600 (5' 3") | 1825 (6') | 2438 (8') |
| Bed Width | 285 (11.¼") | 285 (11.¼") | 285 (11.¼") |
| Gap Length | 110 mm | 110 mm | 110 mm |
| Gap Length in front of Face Plate | 115 mm | 115 mm | 115 mm |
|
Capacity: |
| Height Of Centre | 215 (8.5") | 215 (8.5") | 215 (8.5") |
| Swing over Bed | 440 mm | 440 mm | 440 mm |
| Swing in Gap | 680 mm | 680 mm | 680 mm |
| Swing over Cross Slide | 270 mm | 270 mm | 270 mm |
| Distance Between Centre | 720 mm | 950 mm | 1560 mm |
| Movement of Cross Slide | 200 mm | 200 mm | 200 mm |
| Movement of Compound Slide | 110 mm | 110 mm | 110 mm |
|
Main Spindle: |
| Spindle Nose (Threaded Type) | Ø 76.20 mm | Ø 76.20 mm | Ø 76.20 mm |
| Taper Bore in Spindle Sleeve | MT-3 | MT-3 | MT-3 |
| Spindle Bore | Ø 54 (2.1/8") | Ø 54 (2.1/8") | Ø 54 (2.1/8") |
|
Tail Stock: |
| Quill Dia | Ø 50.8 mm | Ø 50.8 mm | Ø 50.8 mm |
| Taper in Quill | MT-3 | MT-3 | MT-3 |
| Quill Travel | 130 mm | 130 mm | 130 mm |
|
Speed: |
| No. of Spindle Speed | 8 | 8 | 8 |
| RPM (Low/High) | 60 – 1100 | 60 – 1100 | 60 – 1100 |
|
Feeds: |
| Nos. of feeds Range | 52 | 52 | 52 |
| Longitudinal / Rev. | 0.067 to 1.198 mm | 0.067 to 1.198 mm | 0.067 to 1.198 mm |
| Transverse / Rev. | 0.014 to 0.264 mm | 0.014 to 0.264 mm | 0.014 to 0.264 mm |
| Thread / No. of Range | | | |
| Metric Thread | 20 (0.5 to 7.5 mm) | 20 (0.5 to 7.5 mm) | 20 (0.5 to 7.5 mm) |
| English Thread | 32 (4 to 60 TPI) | 32 (4 to 60 TPI) | 32 (4 to 60 TPI) |
| Lead Screw | Ø 1.25" x 4 TPI | Ø 1.25" x 4 TPI | Ø 1.25" x 4 TPI |
| Feed Shaft | Ø 1" | Ø 1" | Ø 1" |
|
Electricals: |
| Motor Power | 3 H.P. / 2.25 KW | 3 H.P. / 2.25 KW | 3 H.P. / 2.25 KW |
|
General: |
| Weight (Approx.) | 750 Kg. | 900 Kg. | 1100 Kg. |
| Floor Space Occupied in (mm) | 1800 x 700 | 2125 x 700 | 2125 x 700 |
| (Approx.)L x W x H | x 1200 | x 1200 | x 1200 |
