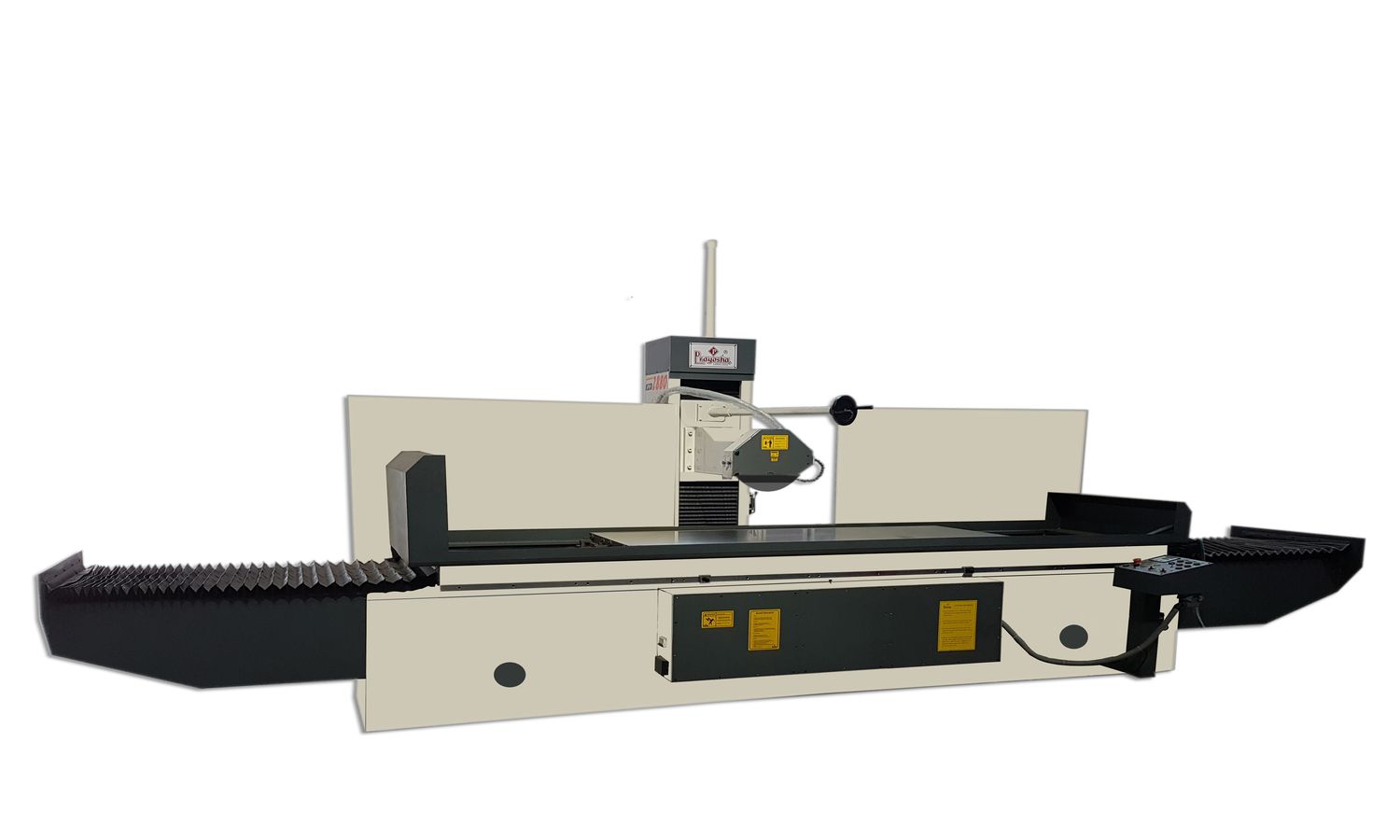

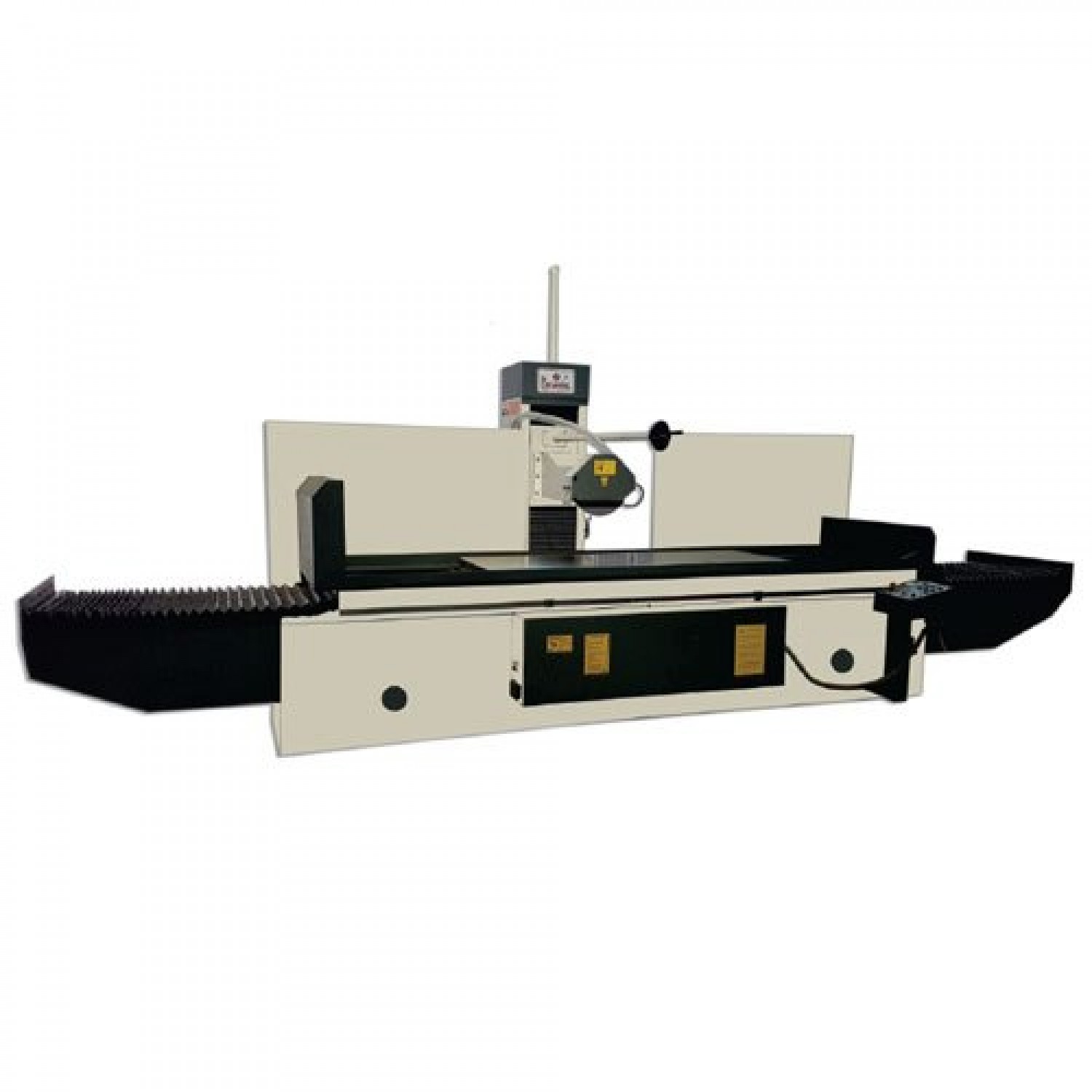

PRAYOSHA - Hydraulic Surface Grinding : Jumbo Plus

Enquiry

Automatic Lubrication Pump

Spanner Set

Wheel flange

Grinding Wheel

Wheel Dresser

Electric Motor

Coolant System

Wheel Puller

Electric Panel Board

Hydraulic Power Pack

Machine Manual

Balancing Mandrill

Electro Magnet Chuck

Wheel Balancing Stand

Magnetic Coolant Separator

Paper Band Filter with Coolant Magnetic Separator

Coolant System

Machine Lamp

Wheel Flange

Wheel Forming Attachment

Dust Collector

DE - Magnetizer

2 Way Universal Vice

3 Way Universal Vice

Parallel Dresser

Punch Former

A = Radius Dressers / B = Tool Room Vice

Specification / Models	Unit	PH 2448	PH 3060	PH 3260	PH 3280	PH 30100	PH 32100
General Capacity
Max. Table Size	mm	600 x 1200	750 x 1500	800 x 1500	800 x 2000	750 x 2500	800 x 2500
Max. Longitudinal Travel	mm	1275	1575	1575	2150	2600	2600
Max. Cross Transverse	mm	650	800	850	850	800	850
Max. Spindle Center Height above Table	mm	700	700	700	700	700	700
Speed and Feeds
Max. Table Speeds	m/min.	1.5-18/2.5-25 (Optional)	1.5-18/2.5-25 (Optional)	1.5-18/2.5-25 (Optional)	1.5-18/2.5-25 (Optional)	1.5-18/2.5-25 (Optional)	1.5-18/2.5-25 (Optional)
Power Cross Transverse	mm/min	1500	1500	1500	1500	1500	1500
Auto Cross Feed at each Table Reversal (Infinitely Variable)	mm	0.5 to 5	0.5 to 5	0.5 to 5	0.5 to 5	0.5 to 5	0.5 to 5
Least Count of Vertical Feed head wheel	mm	0.002	0.002	0.002	0.002	0.002	0.002
Grinding Head
Size of Grinding Wheel	mm	450 x 50 x 127	450 x 50 x 127	450 x 50 x 127	450 x 50 x 127	450 x 50 x 127	450 x 50 x 127
Power of Spindle Motor	Hp	10	10	15	15	20	20
Speed of Grinding Spindle	RPM	1440	1440	1440	1440	1440	1440
Hydraulic System
Working Pressure	Kg/Cm	20	20	20	20	20	20
Motor	Hp	7.5	7.5	7.5	7.5	10	10
Tank Capacity	Ltrs	200	200	200	200	250	250
