PRAYOSHA - CNC Surface Grinding

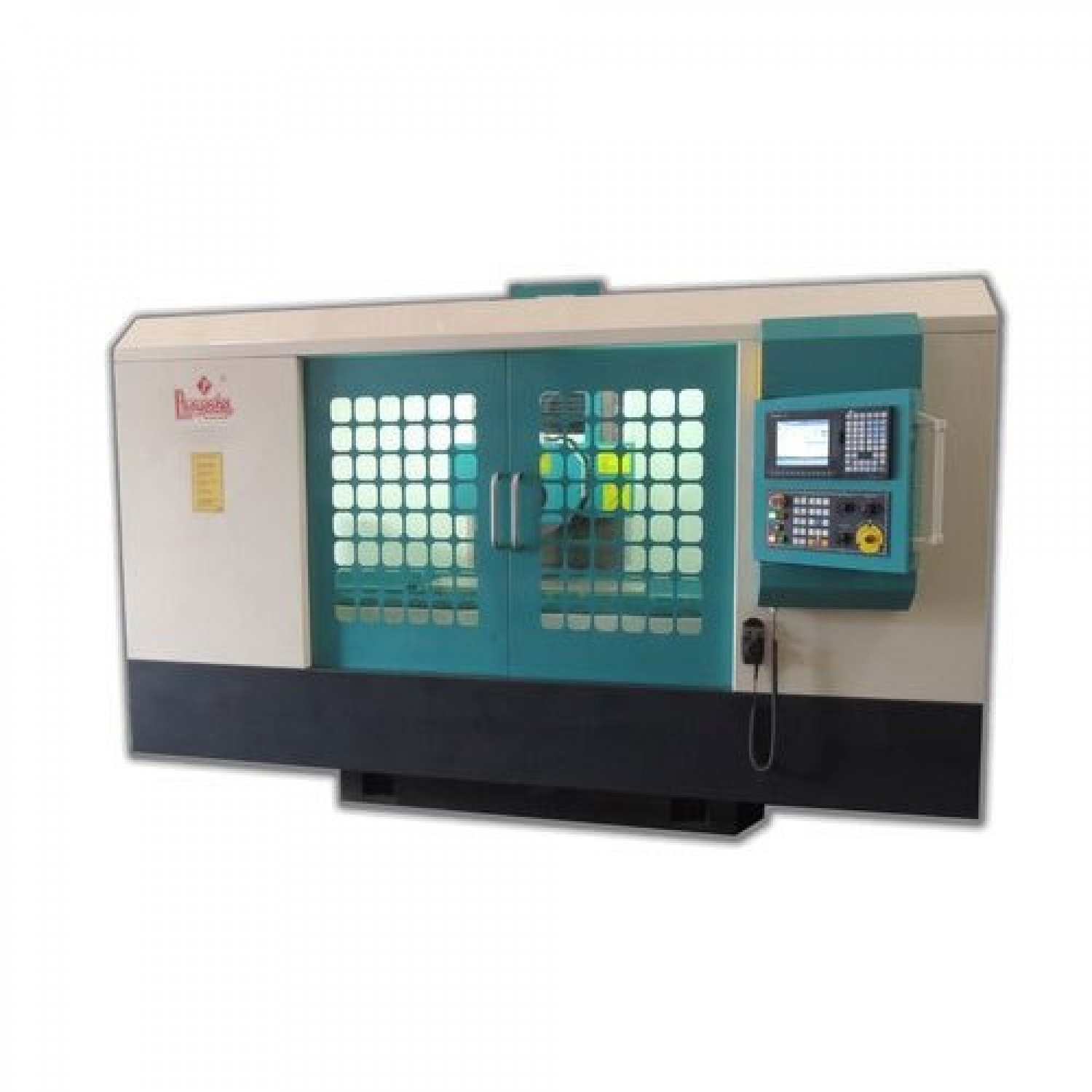

PRAYOSHA - CNC Surface Grinding Machine
Being one of the renowned firms in the industry, we are decidedly betrothed in providing a premium quality array of Suprime CNC Surface Grinding Machine. This machine is manufactured under the supervision a team of our adroit professionals using quality assured components at highly advanced premises. The offered machine is widely used for removing rust from the workpiece. In addition to this, the provided Suprime CNC Surface Grinding Machine is available at market leading price for clients.
Key Points:
Rust resistance
Superior efficiency
Simple operations
User friendly design
Product Type Suprime CNC Surface Grinding Machine
Material Galvanized Steel
Computerized No
Automatic No
Feature High Performance, ECO Friendly, Low Noise, Lower Energy Consumption, High Efficiency
Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
Main Domestic Market
All India
Note: - We reserved the right for any modification in machine without prior notice & showing all parts are not of standard accessories.
Machine is Tasted as per IS: 2743:1992 ISO: 1986:1985
- Technical Specification
| CAPACITY | mm | C2X 1230 | C2X 1240 | C2X 1632 | C2X 1640 | C2X 1260 |
|---|---|---|---|---|---|---|
| CAPACITY | ||||||
| Max. Table Size | mm | 300x 750 | 300 x 1000 | 400 x 800 | 400 x 1000 | 300 x 1500 |
| Max. Longitudinal Travel | mm | 850 | 1075 | 875 | 1100 | 1575 |
| Max. Cross Transverse | mm | 350 | 350 | 450 | 450 | 350 |
| Max. Spindle Center Height above Table | 550 | 550 | 550 | 550 | 550 | 550 |
| SPEED AND FEEDS | ||||||
| Max. Table Speeds | m/min. | 18 | 18 | 18 | 18 | 18 |
| Power Cross Transverse | mm/min | 3000 | 3000 | 3000 | 3000 | 3000 |
| Auto Cross Feed at each Table Reversal (Infinitely variable) | mm | Programmable | Programmable | Programmable | Programmable | Programmable |
| Least Count of Vertical feed head wheel | mm | 0.001 | 0.001 | 0.001 | 0.001 | 0.001 |
| Control(2 AXIS) optional | HUST/Siemens | HUST/Siemens | HUST/Siemens | HUST/Siemens | HUST/Siemens | HUST/Siemens |
| Programming | Standard ‘G’ code and ‘M’ code, With NC File | Standard ‘G’ code and ‘M’ code, With NC File | Standard ‘G’ code and ‘M’ code, With NC File | Standard ‘G’ code and ‘M’ code, With NC File | Standard ‘G’ code and ‘M’ code, With NC File | Standard ‘G’ code and ‘M’ code, With NC File |
| GRINDING HEAD | ||||||
| Size of Grinding Wheel | mm | 350 x 50 x 127 | 350 x 50 x 127 | 350 x 50 x 127 | 350 x 50 x 127 | 350 x 50 x 127 |
| Power of Spindle Motor | HP | 5 | 5 | 5 | 5 | 7.5 |
| Speed of Grinding Spindle | RPM | 1400 | 1400 | 1400 | 1400 | 1400 |
| HYDRAULIC SYSTEM | ||||||
| Working Pressure | Kg/Cm | 20 | 20 | 20 | 20 | 20 |
| Motor | HP | 3 | 3 | 3 | 3 | 3 |
| Tank Capacity | Ltrs | 125 | 125 | 125 | 125 | 125 |
| VERTICAL SLIDE (X-AXIS) | ||||||
| Rapid traverse | mm/min | 3000 | 3000 | 3000 | 3000 | 3000 |
| Min. programmable increment | mm | 0.001 | 0.001 | 0.001 | 0.001 | 0.001 |
| Automatic intermittent feed each table stroke | Programmable | Programmable | Programmable | Programmable | Programmable | Programmable |
| TABLE | ||||||
| Max. Longitudinal traverse | mm | 825 | 1075 | 875 | 1075 | 1575 |
| Infinitely variable speed | mm | 1.5-18 | 1.5-18 | 1.5-18 | 1.5-18 | 1.5-18 |
| Hydraulic Motor Power | mm | 3 | 3 | 3 | 3 | 3 |
| Max. weight of the job | ||||||
| With chuck | mm | 150 | 150 | 150 | 150 | 150 |
| Without chuck | mm | 250 | 250 | 250 | 250 | 250 |
| OPERATING SYSTEM | ||||||
| X-Axis | With L.M Guide, Ball screw, and Servo Motor | With L.M Guide, Ball screw, and Servo Motor | With L.M Guide, Ball screw, and Servo Motor | With L.M Guide, Ball screw, and Servo Motor | With L.M Guide, Ball screw, and Servo Motor | With L.M Guide, Ball screw, and Servo Motor |
| Z-Axis | With L.M Guide, Ball screw, and Servo Motor | With L.M Guide, Ball screw, and Servo Motor | With L.M Guide, Ball screw, and Servo Motor | With L.M Guide, Ball screw, and Servo Motor | With L.M Guide, Ball screw, and Servo Motor | With L.M Guide, Ball screw, and Servo Motor |
| Repeatability for 6 consecutive readings | mm | 0.002 | 0.002 | 0.002 | 0.002 | 0.002 |
| Total connected power (approx.) | KW | 7.5 | 7.5 | 10 | 10 | 10 |
