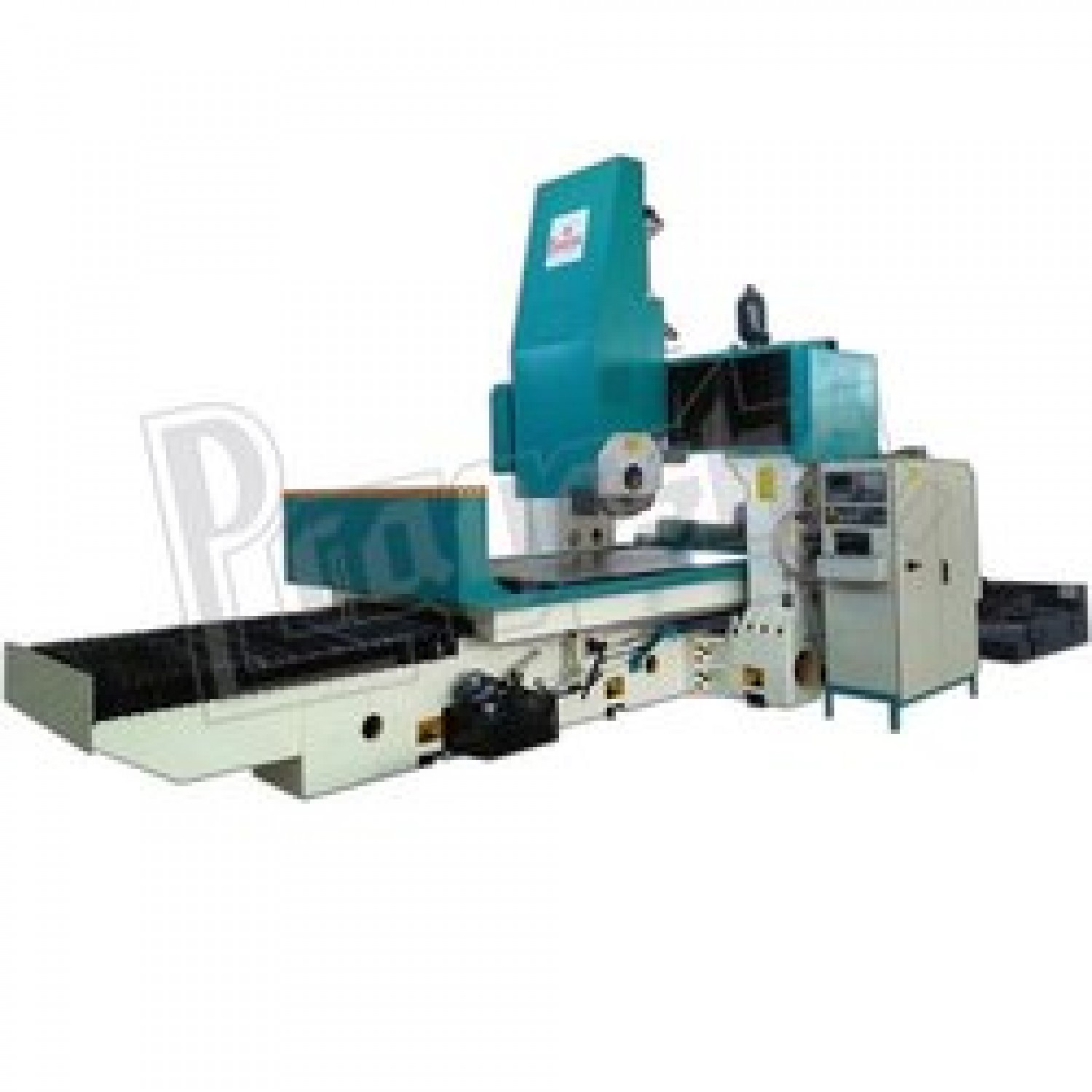

PRAYOSHA - Double Column CNC Surface Grinding

Enquiry

SPECIFICATION / MODELS	UNIT	C2X4080	C2X6080	C2X60100	C2X60120	C2X80200
General Capacity
Grinding Surface of table	mm	1000x2000	1500x2000	1500x2500	1500x3000	2000x5000
Max.travel (cross x Longitudinal)	mm	1100x2200	1600x2200	1200x2700	1600x3200	2100x5200
Wheel Bottom to table (Vertical Head)	mm	600	600	600	600	600
Spindle Center height from table	mm	850	850	850	850	850
Max. height from table top to bottom of standard wheel	mm	500	500	500	500	500
Hydraulic Table Speed	m/min	1.5-18 / 2.5-25 (Optional)	1.5-18 / 2.5-25 (Optional)	1.5-18 / 2.5-25 (Optional)	1.5-18 / 2.5-25 (Optional)	1.5-18 / 2.5-25 (Optional)
Gross Movement
Clearance between the Columns	mm	1200	1700	1700	1700	2200
Intermittent cross feed approx. (Electro-mechanical)	mm	1-40	1-40	1-40	1-40	1-40
Continuous Cross Fee approx. (Electro-Mechanical	mm/min	3000	3000	3000	3000	3000
Hand Feed per division	mm	0.001	0.001	0.001	0.001	0.001
Vertical Movement
Rapid traverse approx	mm	3000	3000	3000	3000	3000
Hand Feed Per divisions MPG	mm	0.001	0.001	0.001	0.001	0.001
Grinding Wheel
Dimension (O.D. x W x I.D)	mm	3000	3000	3000	3000	3000
Spindle Speed (50/60Hz)	RPM	100-1400	1000-1400	1000-1400	1000-1400	1000-1400
Spindle Speed (50/60Hz)
Motor
Horizontal head spindle motor	KW / HP	15 / 20	15 / 20	15 / 20	15 / 20	15 / 20
Vertical head spindle Motor	KW / HP	7.5 / 10	7.5 / 10	7.5 / 10	7.5 / 10	7.5 / 10
Hydraulic Motor	KW / HP
CNC Specification
Cross feed rapid feed rate (approx)	mm / min	3000	3000	3000	3000	3000
Cross / Vertical infeed least input increment	mm	0.001	0.001	0.001	0.001	0.001
Rapid Vertical rate	mm / min	3000	3000	3000	3000	3000
