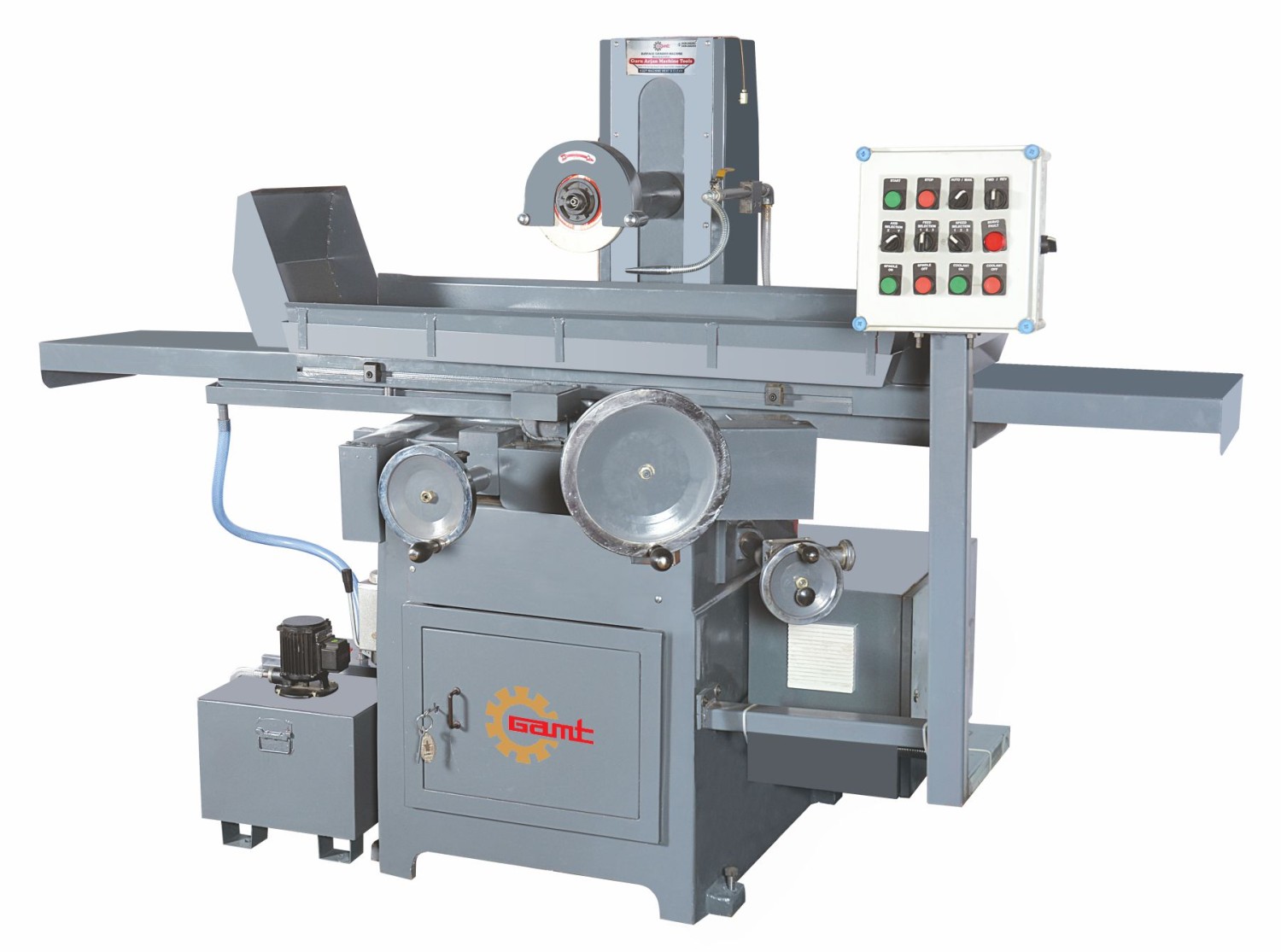

GURU ARJAN - Surface Grinders with Servo Drives
GURU ARJAN - Surface Grinders with Servo Drives
- Accessories
- Technical Specification
STANDARD ACCESSORIES
| Grinding Wheel |
| Flange Extractor |
| Wheel Balancing Arbor |
| Grinding Wheel Flange |
| Diamond Dresser |
| Work Lamp |
| Lube Unit (Manual) |
| Tool Box with Tools |
| Specification /Models | Unit | PH 818 | PH 1020 | PH 1224 | PH 1230 | PH 1240 |
|---|---|---|---|---|---|---|
| General Capacity | ||||||
| Max.Table Size | mm | 200 x 450 | 250 x 500 | 300 x 600 | 300 x 750 | 300 x 1000 |
| Max. Logitudinal Travel | mm | 525 | 600 | 675 | 825 | 1050 |
| Max.Cross Transverse | mm | 225 | 275 | 325 | 325 | 325 |
| Max. Spindle Center Height above Table | mm | 400 | 400 | 400 | 400 | 400 |
| Speed and Feeds | ||||||
| Max. Table Speeds | m/min. | 1.5 - 18 / 2.5 -25(Optional) | 1.5 - 18 / 2.5 -25(Optional) | 1.5 - 18 / 2.5 -25(Optional) | 1.5 - 18 / 2.5 -25(Optional) | 1.5 - 18 / 2.5 -25(Optional) |
| Power Cross Tranverse | mm/min. | 1000 | 1000 | 1000 | 1000 | 1000 |
| Auto Cross Fee at each Table Reversal (Infinitely variable) | mm | 0.5 to 5 | 0.5 to 5 | 0.5 to 5 | 0.5 to 5 | 0.5 to 5 |
| Least Count of Vertical Feed Head wheel | mm | 0.002 | 0.002 | 0.002 | 0.002 | 0.002 |
| Grinding Head | ||||||
| Size of Grinding Wheel | mm | 250 x 25 x 76.2 | 250 x 25 x 76.2 | 250 x 25 x 76.2 | 250 x 25 x 76.2 | 350 x 50 x 127 |
| Power of Spindle Motor | HP | 2 | 2 | 3 | 3 | 5 |
| Speed of Grinding Spindle | RPM | 2800 | 2800 | 2800 | 2800 | 1440 |
| Hydraulic System | ||||||
| Working Pressure | Kg/Cm | 20 | 20 | 20 | 20 | 3 |
| Motor | HP | 2 | 2 | 2 | 2 | 3 |
| Tank Capacity | Ltrs | 75 | 75 | 75 | 75 | 75 |
