Bandsaw

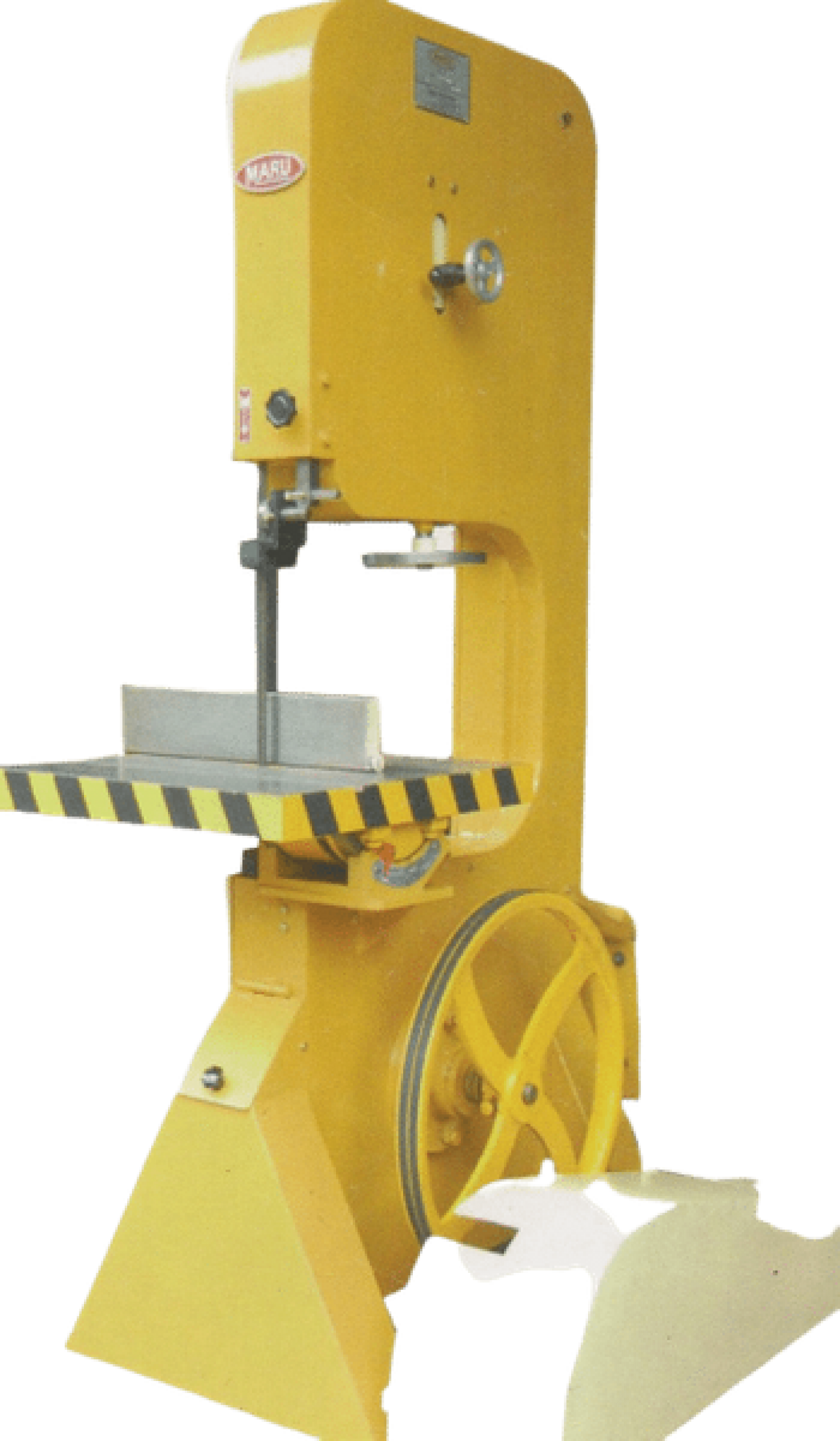

MARU - Wood & Metal Cutting Bandsaw Big Pully
MARU - Wood & Metal Cutting Bandsaw Machine -Side Single Speed Big Pully for Cutting Light & Smooth
- Accessories
- Technical Specification
Extra Accessories
| Motor |
| Starter |
| Model No | MB / 14 | MB / 18 | MB / 24 | MB / 30 |
|---|---|---|---|---|
| Wood & Metal Cutting Bandsaw Machines (Vertical) Side - Single speed Big Pully for Cutting - Light & Smooth | ||||
| Maximum Throat Capacity | 13" | 17" | 23" | 29" |
| Cutting Capacity | 6.5"Hx13"W | 8"Hx17"W | 12"Hx23"W | 15"Hx29"W |
| Diameter of Saw wheels | 14" | 18" | 24" | 30" |
| Size of the Tilting Table (45) | 15" x 15" Tilting - (45) | 18" x 18" Tilting - (45) | 24" x 24" Tilting - (45) | 30" x 30" Tilting - (45) |
| Blade Size for Cutting wood | Oll",Olll", 1"W x 111"L | 1",1ll"W x 135"L | 1",1ll"W x 174"L | 1ll",2"W x 210"L |
| Blade Size for Cutting Metal | Olll"W x 111"L | Olll"W x 135"L | Olll"W x 174'L | 1"W x 210"L |
| Motor Power & Required R.P.M. | 2 H.P. / 3 Phs. 1440 | 2 H.P. / 3 Phs. 1440 | 5 H.P. / 3 Phs. 1440 | 7.5 H.P. / 3 Phs. 1440 |
| V Belt Size | B-51" - 1nos. | B-54"-1nos. | B-68"-2nos. | B-84"-3nos. |
| Machine Size | 32"Lx21"Bx64"H | 31"Lx25"Bx72"H | 48"Lx30"Bx82"H | 60"Lx40"Bx98"H |
