Pipe Cutting

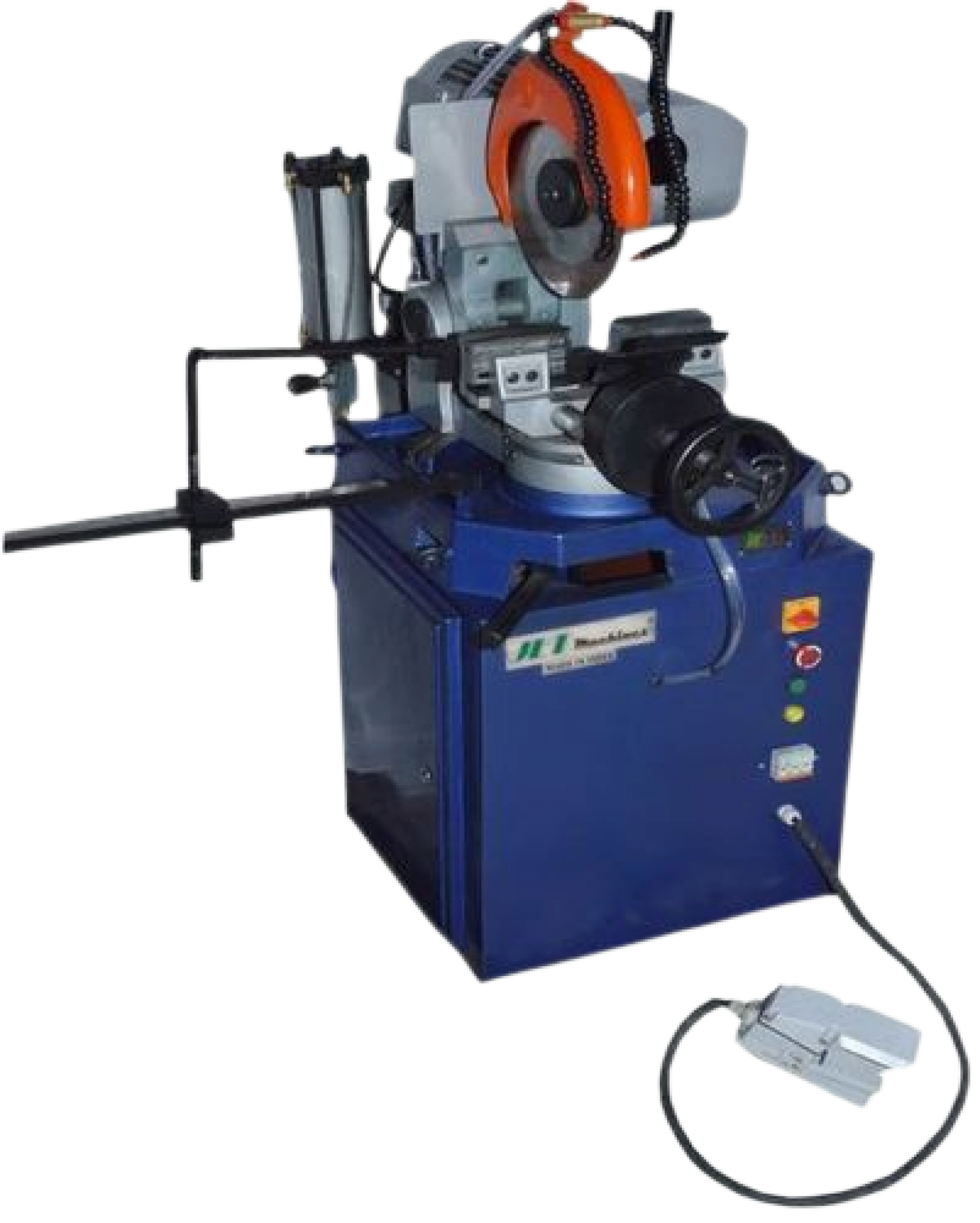

JE315 Semi Automatic Tube Cutting Machine
JE 315 Semi Automatic Tube Cutting Machine
Semi Automatic Pipe Bar Cutting Machine is mainly used for iron, steel, stainless steel, and carbon steel cutting. The machine has a stable and solid structure which gives it a long lifespan. The work pieces donâ??t move forward and backward while cutting so itâ??s very accurate and highly efficient. It has an automatic cooling fluid circulation feature which ensures a smooth work piece section. This is very simple to operate and easy to maintain.
- Technical Specification
| Brand | JET |
|---|---|
| Coolant Motor | 0.1HP |
| Dimensions | 2.6f x 3.5f(floor) |
| Main Motor | 3 HP (Duel speed) |
| Model | JE315 |
| Output | 40/80 RPM @ Max Torque |
| Round Bar-MS | 38mm / 25mm |
| Round Pipe | 95mm / 75mm |
| Saw Angle | +45 - 90 to -45 degree |
| Square Bar -MS | 38mm /25mm |
| Square Pipe | 90x90mm / 70x70mm |
| Total Weight | 330 kg |
