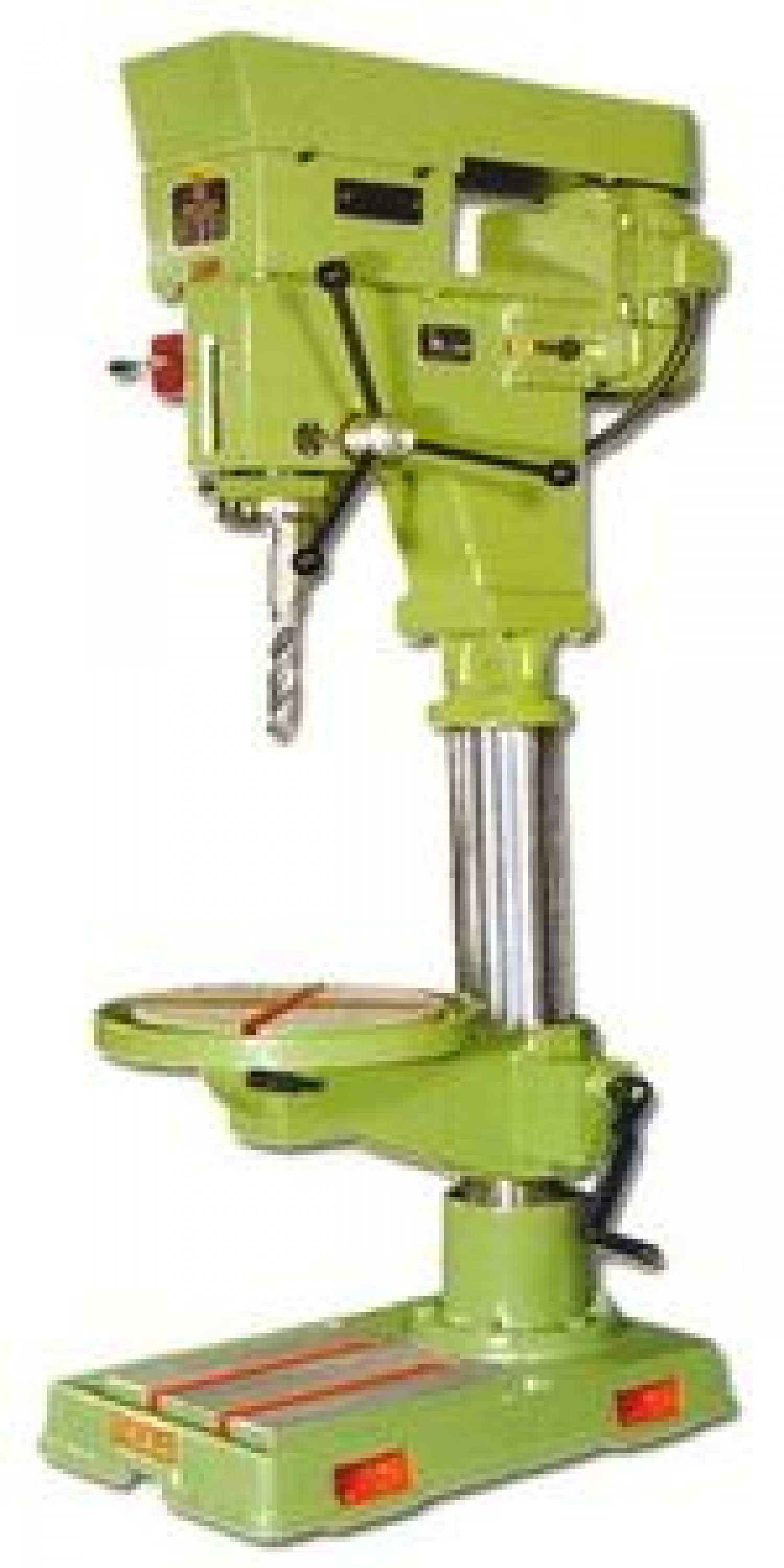

CKP -P2/25/GT Pillar Drilling Machine

Pillar Drilling Machine - Gear Drive

Main Features:
The machine also be supplied with the following speeds on customer's request at extra cost.
With 0.75kw/1 HP 960 rpm motor 65-95-140-205-300 390-570-840-1230-1800 rpm
With 0.75kw/1 HP 720/1440 rpm duall speed motor 50-72-105-155-225-300 / 426-630-930-1350 rpm
Motor[Dual Speed Motor] 100-142-210-310-450-600-852-1260-1860-2700 rpm
The machine can be supplied as gang drilling version also with number of drilling heads over a common table. Specification can be furnished on customer's request.

Note:
All dimensions weight are approximate only. Due to constant improvement and design the specification are subject to change without notice

Enquiry
  • Accessories
  • Technical Specification

Extra Equipments

Drill Chuck
Coolant Pump
Light Fittings
Reduction Sleeves
Machine Vice
D.O.L Strater
Specifications P2/25 P2/25/GT PA/30/GT
Specification - All Dimensions are in"mm"
Drilling Capacity in Steel252525
apping CapacityNIL M16 M16
Morse Taper in SpindleMT3MT3MT3
Spindle Travels 140 140 140
Pillar Diametre120120120
Distance between centre of Spindle & Column Front260260260
Max. Distance between Spindle & Table 610 610 610
Max. Distance between Spindle & Table 1080 1080 1080
Table Working SurfaceØ 335Ø 335Ø 335
able vertical Transfer (manual)470470485
Base Working Surface318 X 300318 X 300318 X 300
No.of Spindle Speeds51010
Range of Spindle Speeds (rpm)400-520-675-880-1142 100-142-210-310-450 600-852-1260-1860-2700 100-142-210-310-450 600-852-1260-1860-2700
FeedsHandHandHand
No. of Spindle Feeds--3
Range of Spindle Feeds--0-31-011-0.21
Power of Drive motor0.75KW/1HP 1440rpm 0.75kw/1HP, 1440rpm, 415 Volt, AC, 3Phase 50 Cycles1.5KW/2HP 1440rpm//415V Ac, 3ph.50Hz
Space Occupied [L X B X H]850 X 600 X 1975850 X 600 X 1975850 X 600 X 1975
Nett Weight 350 Kgs. 440 Kgs. 640 Kgs.
Gross Weight600 Kgs.670 Kgs.800 Kgs.
